The Dräger Alcotest® 7000 sets new standards in breath alcohol testing.
The benefits of the Alcotest 7000 include a wider temperature- and measuring range, low maintenance requirements and various networking options. In addition, the device can perform active alcohol tests via a mouthpiece and passive tests via a funnel. Reliable alcohol tests have never been so fast, simple and efficient. AS3547:2019 certified.
The device is ready to use within seconds. This means that you can perform an (active) test on a subject at any time. It is also possible to measure alcohol in the ambient air (passive), in which case a mouthpiece isn‘t required. All functions required for a measurement are activated with the convenient blue OK button, while two menu buttons are used for navigation.
BENEFITS
Only One Calibration Per Year
Typically alcohol testing devices have to be calibrated every six months. Thanks to its exceptional measurement stability, the Dräger Alcotest® 7000 only needs calibrating every 12 months. As a result, you only have to collect, send off and then re-issue your alcohol testers once a year. This saves time and, above all, money.
Two Measurement Methods In One Device
Alongside the classic test using a mouthpiece, with the Alcotest 7000 you can also carry out tests using a funnel attachment. This enables you to complete a large number of alcohol tests in a very short span of time: time-saving, cost-effective and hygienic.
The funnel-based test gives you an initial indication as to whether or not alcohol is present in the subject's breath. If the answer is yes, you simply press a button to switch over to the mouthpiece-based test mode. The following test then shows you the actual level of alcohol in the subject's breath.
Wide Temperature Range
With the Alcotest 7000 you can take reliable measurements even in extreme temperatures. The alcohol tester's patented heating system and high-quality materials
ensure dependable results in temperatures ranging from -10 °C to +55 °C.

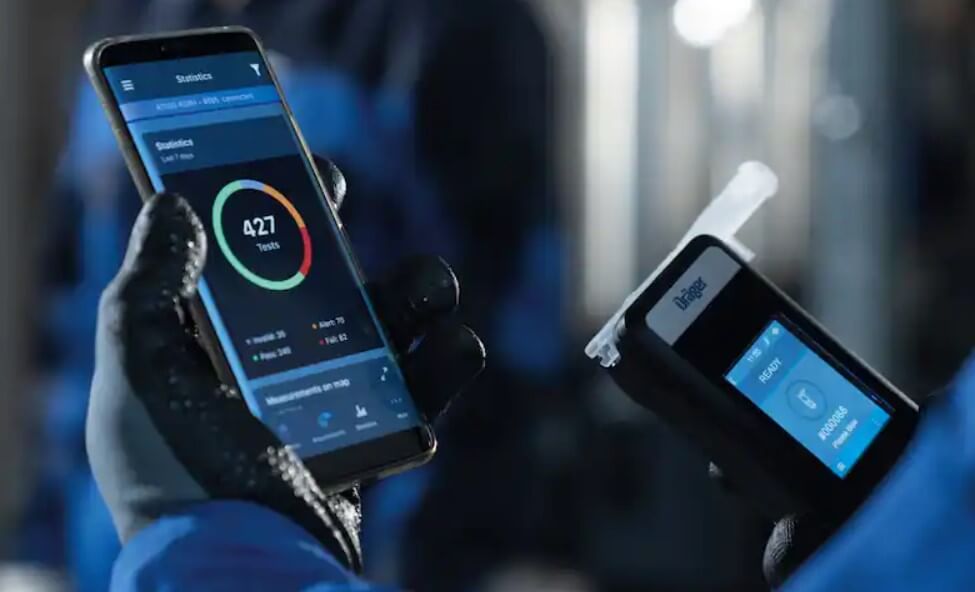

Network-Connected Solutions
The built-in Bluetooth® Low Energy technology offers you energy-saving, digital connectivity for the device and its data. This has many advantages: For example, the wireless connection of the alcohol tester to the Dräger BT Mobile Printer enables you to print out test results from a distance of up to 15 meters.
In addition, our software solution "Dräger add" facilitates a range of processes - e.g. the documentation of the measuring data on site.
Dräger's Service Connect software enables you to download measurement data and much more. You can also connect the Alcotest 7000 directly to a computer with a USB-C cable to read out just the test results.
High Alcohol-Detection Limits
The increased performance capacity of the Alcotest 7000 also includes its measurement range. The maximum blood-alcohol limit that can be set with this alcohol testing device is as high as 0.600 g/210L. If this measurement range limit is exceeded, the display will tell you.
The Alcotest Hygiene Plus
Hygiene is an increasingly important part of our everyday lives. Dräger Alcotest breath-alcohol detection devices use non-invasive measuring technologies with a high degree of hygiene – for the user as well as the test subject – thanks to the following features:
- During testing, the exhaled air is directed past rather than through the device
- There is a 90° angle between the user and the test subject during testing
- Disposable mouthpieces and funnel attachments are individually packaged
- Benefits of the Slide ’n’ Click mouthpieces:
- Safe, hygienic distance between user and test subject
- Spacer prevents direct contact between lips and device
- Mouthpiece is easy to remove
- The non-return valve prevents inhalation of air through mouthpiece
- Benefits of the replaceable funnel attachment:
- No body contact with the test subject
- Blocks backflow of the test subject's own exhaled air, which prevents intake of potential pathogens from previous test subjects
- Benefits of the replaceable funnel attachment:
- No body contact with the test subject
- Blocks backflow of the test subject's own exhaled air, which prevents intake of potential pathogens from previous test subjects
Innovation Born Out Of Tradition
With more than 65 years of experience, Dräger is a market leader in the field of breath-alcohol testing. Law enforcement in many countries use devices from the Alcotest product series in everyday traffic monitoring. The Alcotest 7000 is manufactured in Germany and meets the highest quality standards.
